Remote Terminal

$450.00

The Remote Terminal is only compatible with Dry Bath SKUs: RIC20 and RHB20

Description

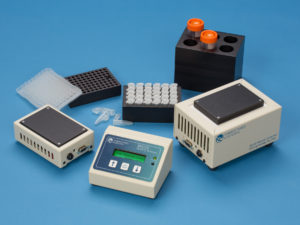

EchoTherm MIC20 Remote Terminal is for use with the RIC20 and RHB20 Chilling/Heating Dry Baths and Heating Dry Baths only.  They control, configure, and monitor the models of RIC20 and the RHB20 without using an external computer or controller.  Connect the MIC20 to any of these units to set temperature and more using the RS232 I/O port and the cable provided.

Features

  • Set and collect data without using a PC
  • Battery operated for portable use. External power supply available
  • Two-line alphanumeric display
  • Display current set point, temperature and timer
  • Collect current set point or temperature
  • Set or clear idle mode (heater off)
  • Set and check calibration values of RIC20 or RHB20
  • Event notification control for temperature broadcasting
  • Event notification to enable or disable temperature or time messages
  • Utility feature for getting status values
  • ID functions for model, version, and serial number, and to get or set ID
  • Compact size for easy hand-held operation: 4" (102 mm) deep x 5" (127 mm) wide x 2.5" (63.5 mm) tall.. Weighs 1.5 pounds
  • Six AA batteries provided. Battery life of 230 hours of continuous use.
  • 12-month warranty
  • UL, CSA, and CE compliant

Applications

  • Remote control of any RIC20 or RHB20 module under a fume hood or environmental chamber
  • Remote control of any RIC20 or RHB20 on any robotic system without a computer
  • Temporary "jump between" the external controlling computer and the RIC20 or RHB20 to quickly monitor or make changes without using the controlling computer
