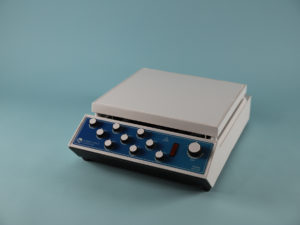

Analog Multi-Position Stirring Hot Plates

SKU: N/A Category:

Stir or heat and stir on a rugged, quick heating, flat, white solid ceramic heater surface in either standard or corrosion resistant models.

Manual

Data Sheet

Clear

Description

Each Torrey Pines Scientific® hot plate is made with a cast aluminum chassis that is painted with chemically resistant epoxy paint. The chassis is designed to keep spills out of the case. Heating and stirring controls are solid state and are mounted well forward of the heater surface to prevent accidental burns. Additionally, the solid ceramic heater plate is framed in cast aluminum and is designed to keep heat from the edge of the heater plate. Hot plate stirrers are available in the “C” version with minimal chassis openings and purge ports for pressurizing the inside of the chassis with lab air or any inert lab gas. This positive pressure keeps aggressive vapors from getting inside the chassis and away from the control electronics extending the life of the unit.

Includes products: EchoTherm™ HS15 and HS15C, EchoTherm™ HS19 and HS19C





Features

  • Heat to 450°C on plate surface in minutes
  • Stir from 100 to 1500 rpm on each stirring position with individual controls
  • Stir 5-800 ml beakers on HS15
  • Stir 9-400 ml beakers on HS19
  • Plate size on all units is 12” (30.48 cm) x 12”(30.48 cm)
  • Solid ceramic heater surface for excellent chemical resistance
  • Heater plate mounted in cast aluminum frame that remains cool for safety
  • Fused for safety
  • Powerful resistance heaters on hot plate/stirrers
  • Rugged cast aluminum chassis
  • 12-month warranty
  • UL, CSA and CE certified

Applications

  • Drying solid sample from solutions
  • Acid digestions (corrosion resistant models recommended)
  • Making agarose
  • Lens coating and testing
  • Testing solar cells
  • Testing fuel oil
  • Heating emulsions
  • Distillations
  • Cleaning solids, silicone wafers, PC boards and more using acids (corrosion resistant models recommended)
  • Radiochemistry
  • General laboratory sample heating without an open flame

Full Product Specifications

Temperature Measurement
Temperature Range 80–450°C
Temperature stability +/- 2.5 C of setting
Heater power in watts 1500 watts (HS15 and HS15C), 1700 watts (HS19 and HS19C)
Stirrer
Speed range unloaded 100–1500 rpm
Maximum load, aqueous Varies by Model: 5 -800ml beakers (HS15 and HS15C); 9-400ml beakers (HS19 and HS19C)
Magnet strength 20 lbs
Weight capacity on heater surface Over 50 lbs (22.5 kg)
Electrical
Operating voltages available 100 VAC/50 Hz, 115 VAC/60 Hz, 220 VAC/60 Hz and 230 VAC/50 Hz
Power consumption Varies by Model: 1500 watts (HS15); 1700 watts (HS19)
Current Draw: 100/115 VAC Models Varies by Model: 12.5 amps (HS15); 14.5 amps (HS19)
Current Draw: 220/230 VAC Models Varies by Model: 6.2 amps (HS15); 7.5 amps (HS19)
Fused Yes
Detachable line cord Yes
Overall Dimensions
Size 17" deep x 12.5" wide x 4.5" tall
